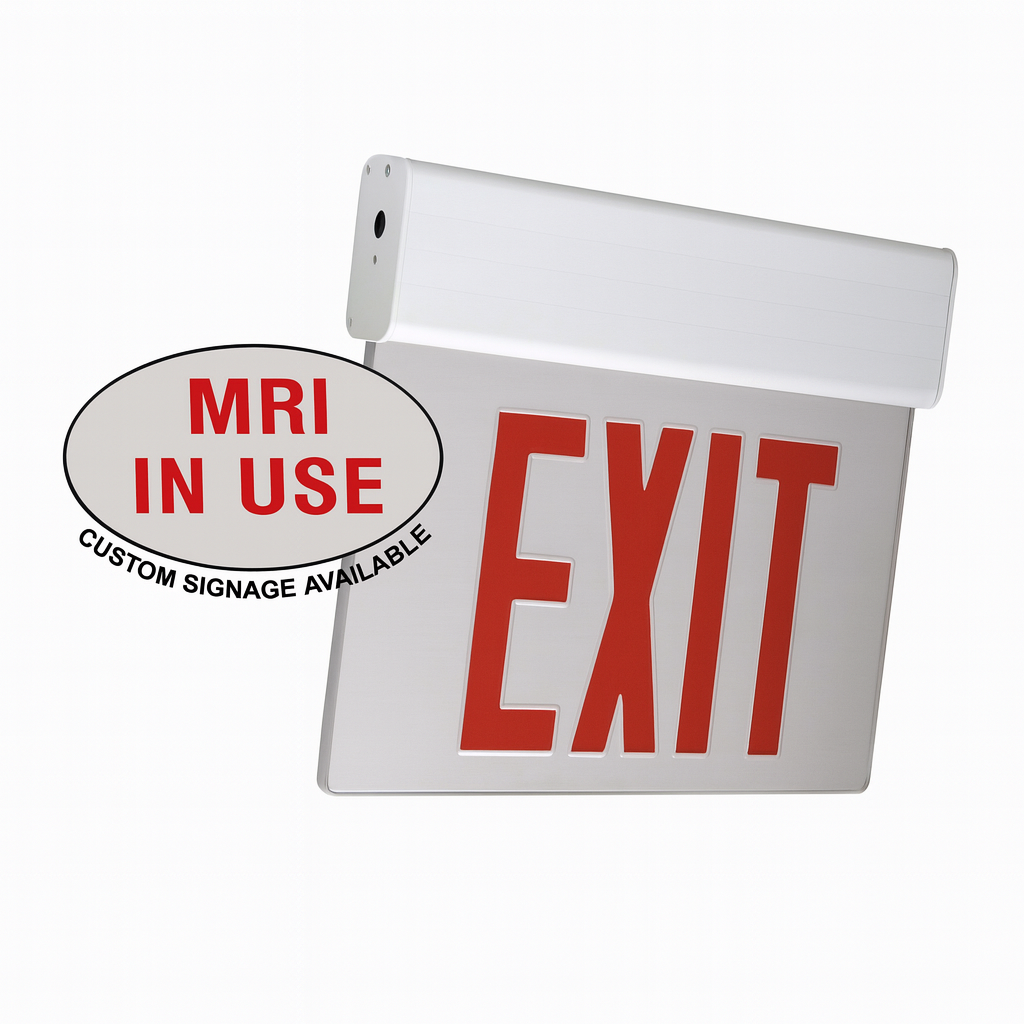

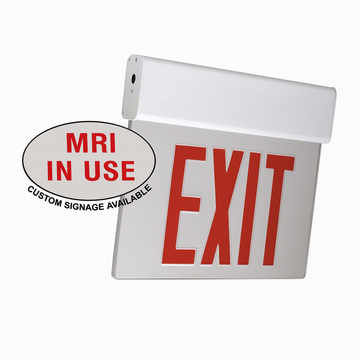

Surface Mount White Exit Sign

EDGELIT ALUMINUM EXIT SIGN

ILLUMINATION

• Ultra bright, energy efficient, long life Red or Green LEDs.
• UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
• Double face utilizes factory installed silver or white mylar background panel.

ELECTRICAL

• Dual 120/277 voltage standard.
• Charge rate power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Aluminum mounting canopy included for top, end or back mount.

HOUSING

• Premium-grade, extruded aluminum housing (also available in optional black or white powder-coated finishes).
• Self-adhesive Chevron appliques and guide template provided for directional indication.

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery prorated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C - 50°C).
• Certified to CEC under Title 20 Regulations.
