LED 1 CLR 40-75UNV WS CS
LED 1 CLR 40-75UNV WS CS
LED 1 CLR 40-75UNV WS CS

LED 1 CLR 40-75UNV WS CS

Key Benefits:

  • Default Wattage: 75W
  • Default CCT: 5,000K
  • IP65 rated
  • Easy installation and maintenance
  • Corrosion and rust proof

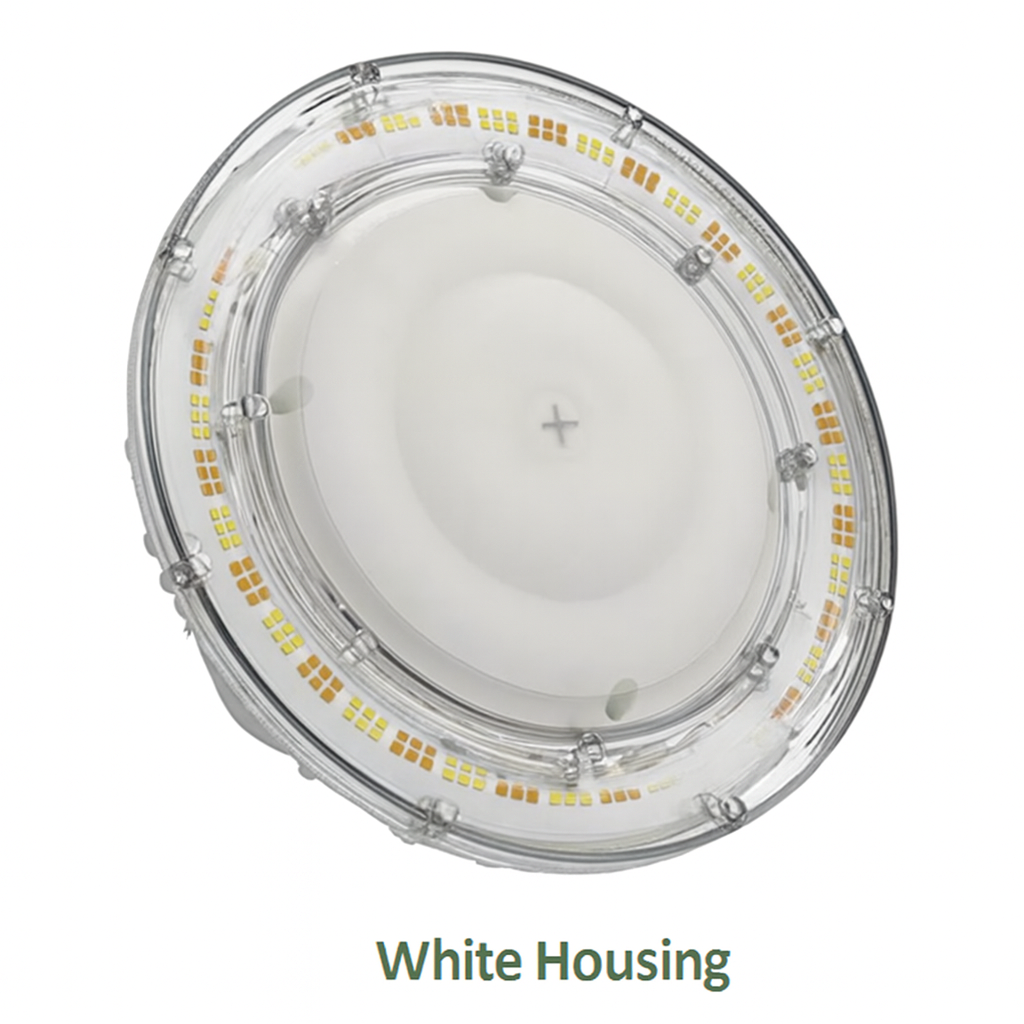

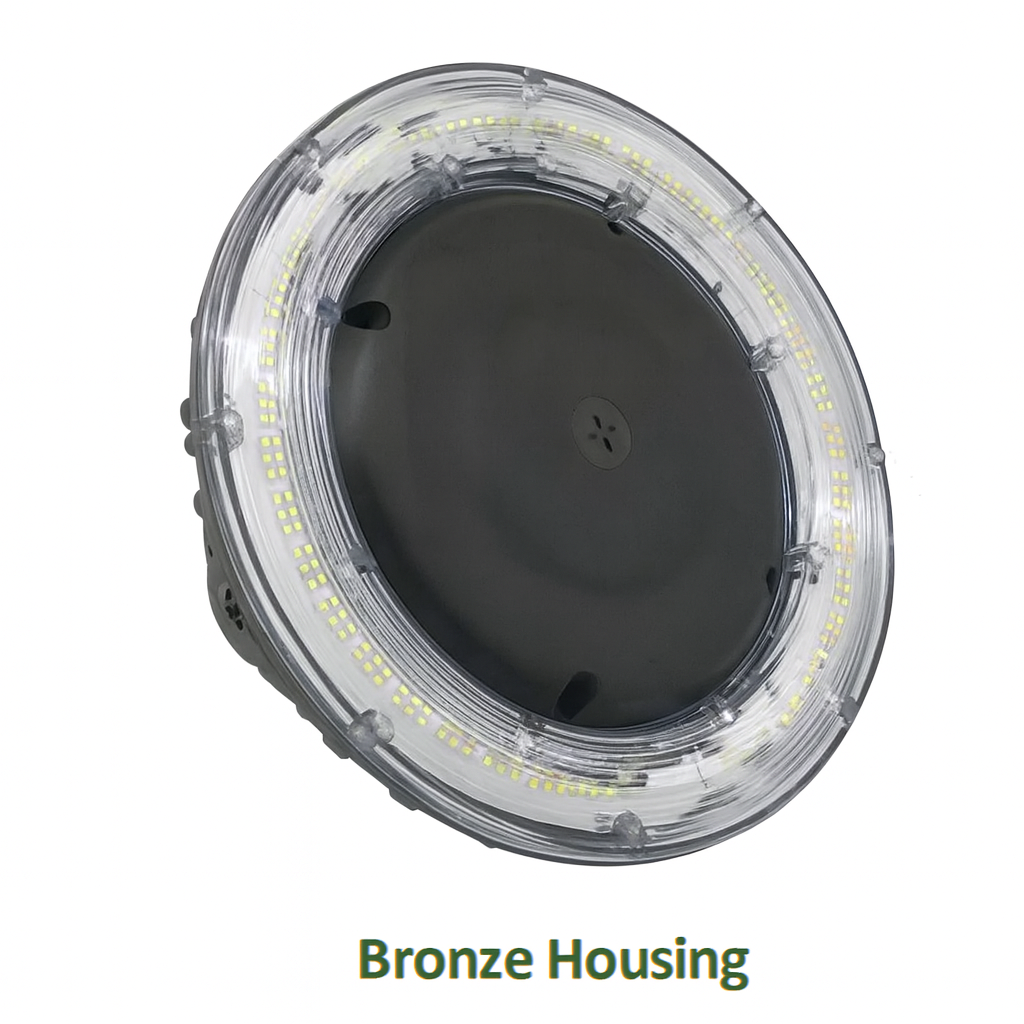

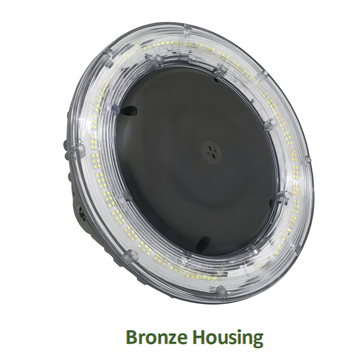

  • Housing color: Bronze or White
  • 50,000 hours lifetime
Contact Us

Pay with total security
40+ Years of Expertise
Wholesale Pricing Advantage
Wide Product Range
Built for Durability
Trusted by Professionals

Product Description & Technical Specifications

LEDCLR-60UNV-WH-M (White Housing)

WATTAGE SELECTABLE
CCT SELECTABLE
LUMENS
EFFICACY
VOLTAGE
CRI
POWER FACTOR
THD
REPLACES
40W
3000K / 4000K / 5000K
5,400LM
135lm/W
120-277V
70
0.9
20%
MH150W HID
50W
3000K / 4000K / 5000K
6,750LM
135lm/W
120-277V
70
0.9
20%
MH175W HID
60W
3000K / 4000K / 5000K
8,100LM
135lm/W
120-277V
70
0.9
20%
MH200W HID
75W
3000K / 4000K / 5000K
10,125LM
135lm/W
120-277V
70
0.9
20%
MH250W HID

LEDCLR-60UNV-WH-M (White Housing)

WATTAGE SELECTABLE
CCT SELECTABLE
LUMENS
EFFICACY
VOLTAGE
CRI
POWER FACTOR
THD
REPLACES
40W
3000K / 4000K / 5000K
5,400LM
135lm/W
120-277V
70
0.9
20%
MH150W HID
50W
3000K / 4000K / 5000K
6,750LM
135lm/W
120-277V
70
0.9
20%
MH175W HID
60W
3000K / 4000K / 5000K
8,100LM
135lm/W
120-277V
70
0.9
20%
MH200W HID
75W
3000K / 4000K / 5000K
10,125LM
135lm/W
120-277V
70
0.9
20%
MH250W HID
Download Datasheet
LED 1 CLR 40-75UNV WS CS

Key Features & Benefits

CONSTRUCTION:
Heavy die-cast aluminum housing with polyester powder-coated finish

OPTICAL SYSTEM:
Seoul 2835 LED chips. Frosted lens. 135° beam angle.

WARRANTY:
1-year limited warranty. Actual performance may differ as a result of end-user environment and application.

ELECTRICAL:
Available as 120-277V input. -20°C to 50°C, -4°F to 122°F

INSTALLATION & MOUNTING:
Wall Mounting with quick mount back plate for easy installation.

CONTROLS & DIMMING:
0-10V dimming comes standard.
