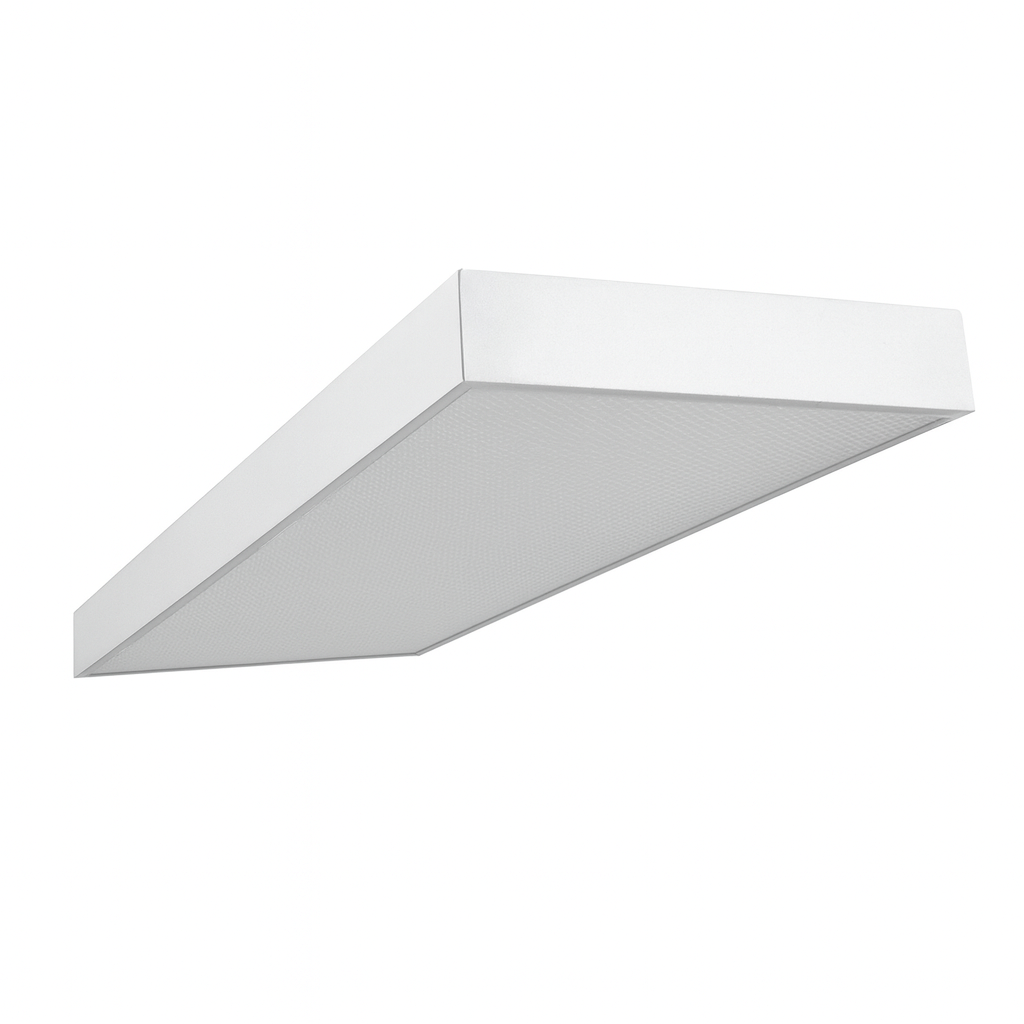

ESL Series

ESL Series

Key Benefits:

  • Available Sizes: 1x4, 2x2, 2x4 configurations
  • Heavy-gauge die-formed steel with rust-inhibiting phosphate coating and post-painted high-gloss powder coat (90% reflectivity)
  • Flush white steel door with mitered corners; hinged from either side
  • Electronic T8 (instant start, <20% THD) or optional T5; UNV option for 120–277V
  • Surface or pendant/stem mounting; continuous row installation supported
Contact Us

Pay with total security
40+ Years of Expertise
Wholesale Pricing Advantage
Wide Product Range
Built for Durability
Trusted by Professionals

Product Description & Technical Specifications

ESL "Cajon" Surface Box Specifications

Feature Details
Sizes Available 1x4, 2x2, 2x4
Material Die-formed heavy gauge steel, post-painted with powder coat
Finish High gloss white, 90% reflectance
Lens Options #12 Acrylic Prismatic (Standard), White Acrylic (Optional)
Lamp Type T8 standard; optional T5; U-lamp and PLL compatibility
Voltage 120V, 277V, or Universal 120-277V (UNV)
Ballast Electronic, Instant Start, Class P, <20% THD; <10% THD optional
Mounting Surface or Pendant; Individual or Continuous Row
Certifications UL & C-UL Listed; Damp Location Rated
Access Swing-action cam latches; no tools needed
Emergency Option Available with battery backup
Assembly Factory-assembled; ready for installation
Download Datasheet
ESL Series

Key Features & Benefits

Easy Installation & Maintenance: Tool-free access to ballast and lamp compartment speeds up installation and relamping

Energy Efficiency: Designed for high-efficiency T8/T5 electronic ballasts with optional low THD and universal voltage

Durability: Post-painted steel with phosphate coat resists rust and enhances fixture longevity

Cost Savings: Low yearly operating cost (~$3.45 per 1000 lumens @ 3000 hrs/year, $0.08/kWh)

Flexible Deployment: Suitable for continuous runs or standalone use

Professional Look: Low-profile design blends seamlessly into commercial environments
