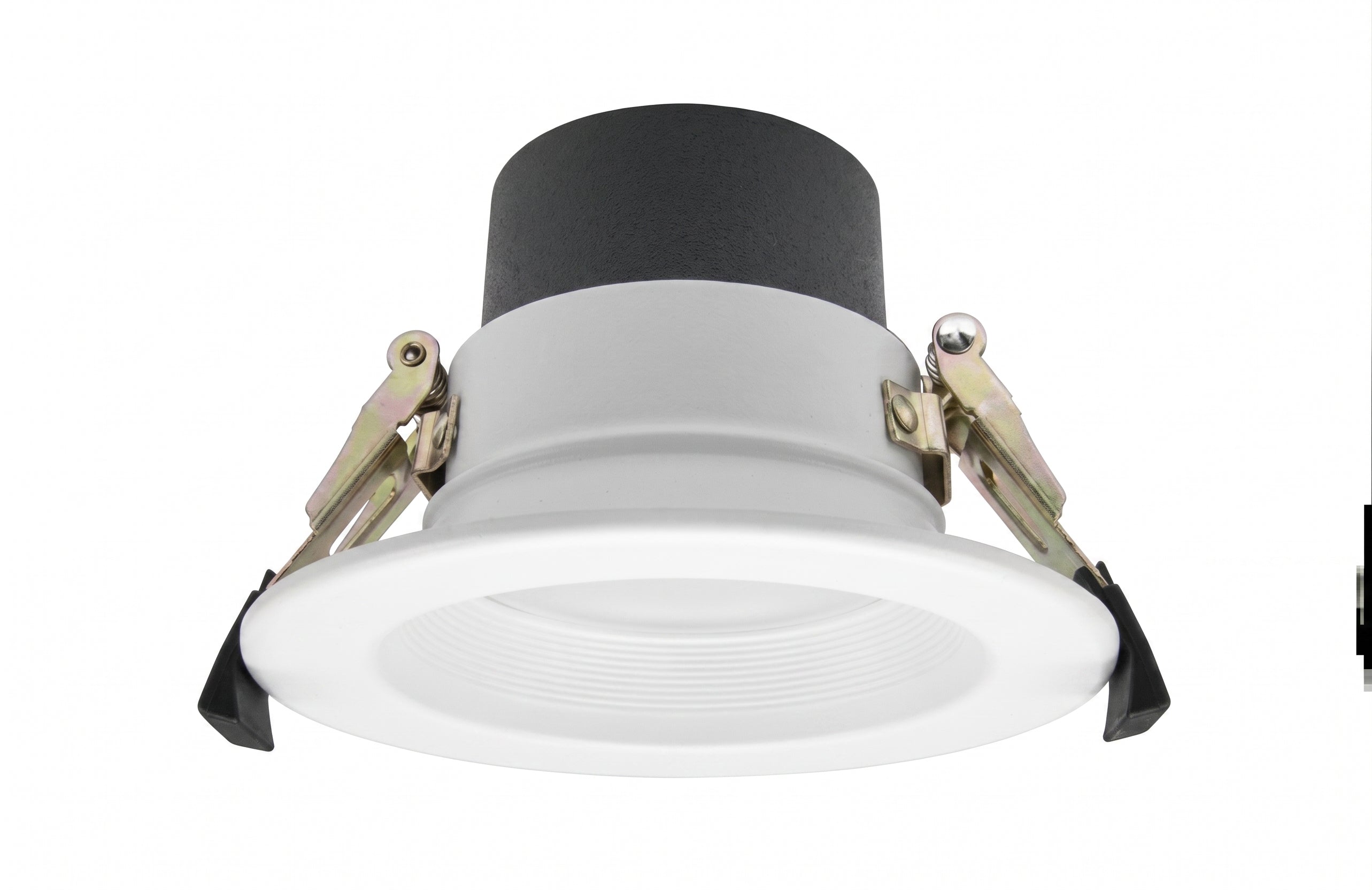

LEDBHHA4 4" Architectural Downlight

LEDBHHA4 4" Architectural Downlight

Key Benefits:

  • Field Selectable CCT: Choose from five color temperatures: 2700K, 3000K, 3500K, 4000K, or 5000K.
  • Adjustable Lumen Output: Selectable nominal output of 1,000, 800, or 500 lumens with selectable wattage options of 12W, 9W, or 6W.
  • High-Quality Illumination: Features a Color Rendering Index ($R_a$) > 90 for superior color accuracy.
  • Longevity: Long-life LEDs providing at least 70% lumen maintenance for up to 149,000 hours of operation.
  • Compatibility & Controls: Standard universal 120-277V AC voltage and 0-10VDC dimming.
  • Durability: Rated for wet locations (not exceeding 45°C) and includes 1.5kV surge protection.
Contact Us

Pay with total security
40+ Years of Expertise
Wholesale Pricing Advantage
Wide Product Range
Built for Durability
Trusted by Professionals

Product Description & Technical Specifications

LEDBHHA4 4" Architectural Downlight Specifications

Series Nominal Lumens (Selectable) CCT (Selectable) Baffle Type
LEDBHHA4 1,000 / 800 / 500 2700K - 5000K White Baffle

Dimensions & Weight

Diameter (Ø) Height (H) Weight
5.1" 3.2" 0.7 lbs
Download Datasheet
LEDBHHA4 4" Architectural Downlight

Key Features & Benefits

Architectural Versatility: Ideal for professional settings requiring precise control over lighting atmosphere.

Easy Installation: Designed for simple installation in new or retrofit projects, compatible with 4.35" cut-outs and 4" mounting frames.

Safety & Standards: Energy Star certified, FCC Part 15 Class B compliant, and Type IC rated.

Emergency Ready: Optional remote emergency battery back-up available with test button.
