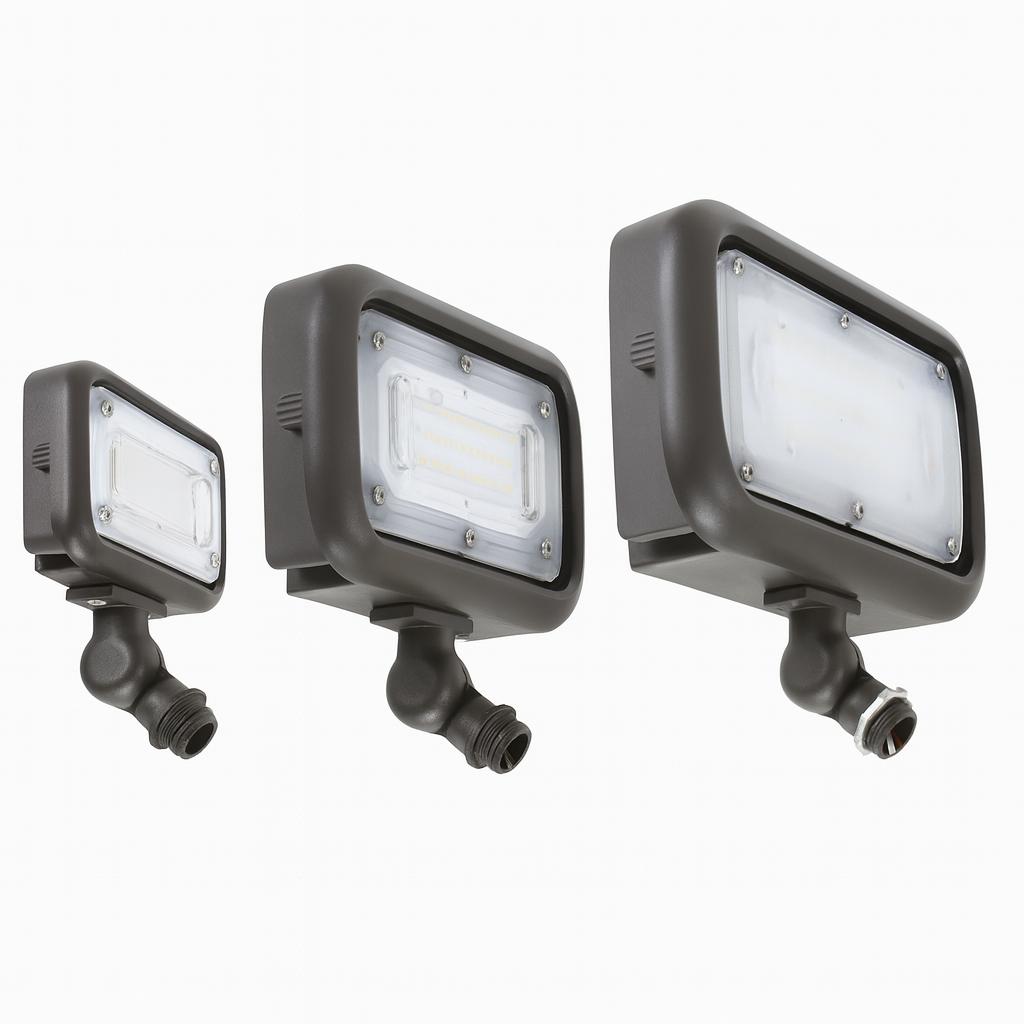

LED Mini Flood Light Series LEDMFS

LED Mini Flood Light Series LEDMFS

Key Benefits:

  • Built in dusk to dawn photocell available
  • Lightweight and easy access wiring
  • Corrosion and rust proof
  • 50,000 hours lifetime
Contact Us

Pay with total security
40+ Years of Expertise
Wholesale Pricing Advantage
Wide Product Range
Built for Durability
Trusted by Professionals

Product Description & Technical Specifications

Performance Data

System Watts
Voltage
3000K(70CRI) Lumens
3000K(70CRI) Efficacy
4000K(70CRI) Lumens
4000K(70CRI) Efficacy
5000K(70CRI) Lumens
5000K(70CRI) Efficacy
15W
120-277V
1373lm
93lm/W
1500lm
100lm/W
1500lm
100lm/W
30W
120-277V
2693lm
95lm/W
3000lm
100lm/W
3000lm
100lm/W
45W
120-277V
5152lm
114lm/W
5400lm
120lm/W
5400lm
120lm/W
Download Datasheet
LED Mini Flood Light Series LEDMFS

Key Features & Benefits

CONSTRUCTION:

  • Rugged single-piece, die-cast aluminum housing with integral heat sink fins.
  • Housing has direct contact with the driver to help maintain low temperature and long lifespan.
  • Housing is completely sealed against moisture and environmental contaminants.

FINISH:

  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.

OPTICS:

  • Standard NEMA 7Hx7V light dispersion.
  • Light engines are available in standard 3000K, 4000K, and 5000K configurations.
  • A range of lumen options available from 1,393 to 5,400 Lumens, replaces up to 150W metal halide.
  • Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.

ELECTRICAL:

  • Universal 120-277V input voltage.
  • THD: ≤20%, Power Factor: ≥90%.

INSTALLATION:

  • Knuckle mount or trunnion mount options are available.

LIFESPAN:

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

LISTINGS:

  • UL listed for wet locations.
  • Rated for ambient operating temperature -40°F to 113°F (-40°C to 45°C).
