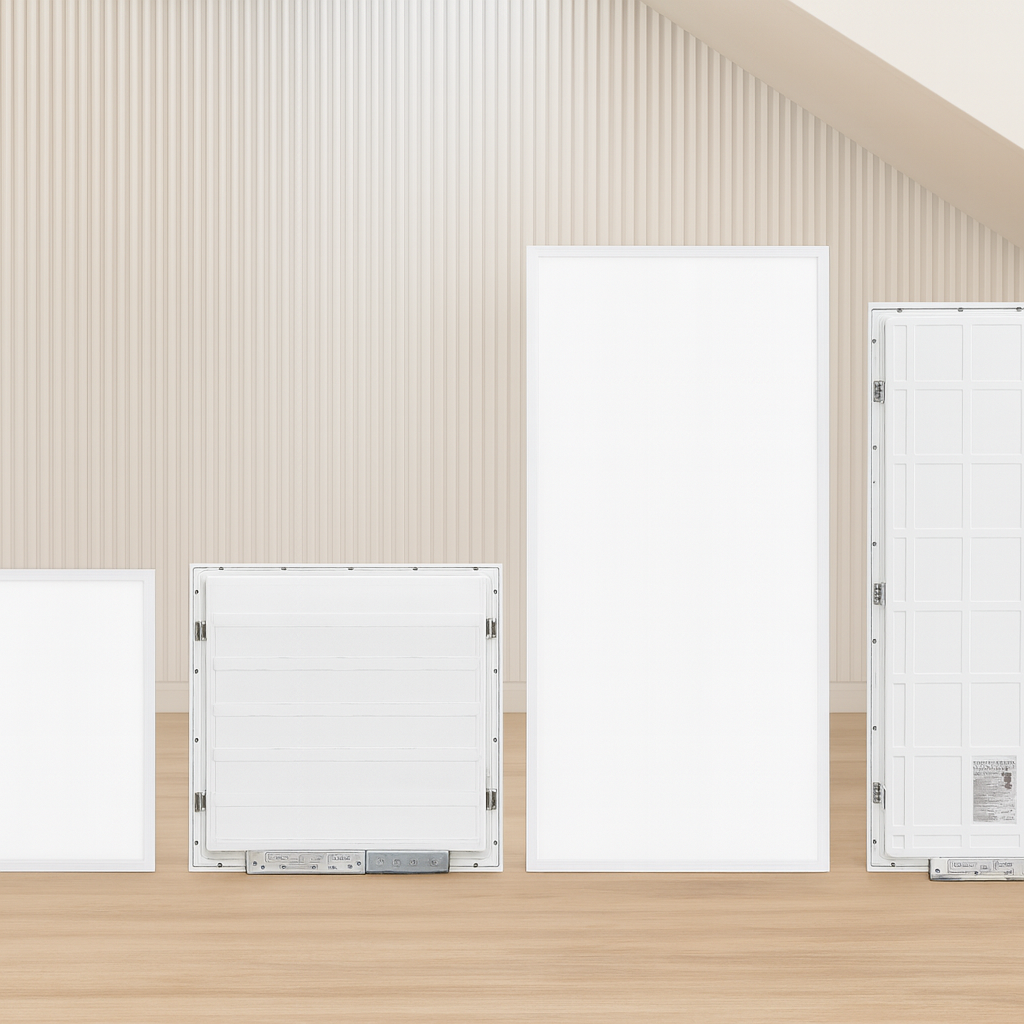

Back-Lit Led Panel Light
Back-Lit Led Panel Light

Back-Lit Led Panel Light

Key Benefits:

  • High-strength metal frame
  • PMMA Lens
  • Recessed
Contact Us

Pay with total security
40+ Years of Expertise
Wholesale Pricing Advantage
Wide Product Range
Built for Durability
Trusted by Professionals

Product Description & Technical Specifications

ORDERING INFORMATION

MODEL
SIZE
INPUT VOLTAGE
POWER (TUNABLE)
CCT (TUNABLE)
CRI
LUMINOUS EFFICIENCY
DIMMABLE
LIMITED WARRANTY
LEDEFP22UNV-CCT
2x2 FT
120-277VAC
20W/25W/30W/35W/40W
3000K, 3500K, 4000K, 5000K, 6500K
Ra>80
150lm/W
0-10V
5 years
LEDEFP14UNV-CCT
1x4 FT
120-277VAC
20W/25W/30W/35W/40W
3000K, 3500K, 4000K, 5000K, 6500K
Ra>80
150lm/W
0-10V
5 years
LEDEFP24UNV-CCT
2x4 FT
120-277VAC
30W/40W/50W/60W/72W
3000K, 3500K, 4000K, 5000K, 6500K
Ra>80
150lm/W
0-10V
5 years

LUMINAIRE AND ELECTRICAL PERFORMANCE

OPERATING TEMPERATURE RANGE
ESTIMATED LIFETIME @ 25°C (77°F)
POWER FACTOR
TOTAL HARMONIC DISTORTION
DIMMABLE
-22°F to 104°F (-30°C to 40°C)
54,000 hours
>0.95 at full load
<15% at full load
0-10V Dimming
Download Datasheet
Back-Lit Led Panel Light

Key Features & Benefits

PRODUCT SPECIFICATIONS

  • Delivering up to 150LPW
  • CRI: Ra≥80
  • CCT Tunable: 3000K / 3500K / 4000K / 5000K / 6500K
  • 5 different power tunable
  • Dimmable: 0-10V
  • Smooth and comfortable light, no glare
  • Estimated Lifetime @ 25˚C: >54,000 hours
  • Power Factor: > 0.95
  • Total Harmonic Distortion: < 15% at full load
  • Limited Warranty: 1years
  • Microwave induction and Bluetooth control are optional
  • Operating Temperature Range:-22° F to 104° F (-30°C to 40℃)
